2014_03_11: it’s progress Jim, but not as we know it

So I spent most of yesterday trying to find what causes my work to crash Safari under iOS7: turns out it’s the gizmo that clusters the CC markers. Not going to cure that in a hurry!

Then I tried for several hours to add the info features from leaflet’s chloropleth/geoJSON example to my script. I got the LAs to highlight on mouseover, but not to de-highlight on mouseout. Nor could I get the data control to pick out data from the LA geoJSON file.

So I reasoned ‘if I can’t add their stuff to mine, can I add my stuff to theirs?’ That is, could I swap in my LA and CC data sets and use leaflet’s code to colour them and pick out data to be displayed in their external control? This seemed to go OK until I added in the geocoder (the bit for entering an address to zoom to that area of the map. This code failed, so everything that should have been processed after it wasn’t even reached.

I went back to trying to add leaflet’s functions to my otherwise functional code. Still no joy.

I refactored my code so it was in a more logical order:

  1. preparatory functions,
  2. drawing basic map
  3. adding scale, geocoder, reset and help controls to map
  4. adding LA data layer
  5. adding CC data layer
  6. adding layers on/off control

and made the reset control call a URL from a simple configuration file, so that when the client actually puts this work online, they only need to update the configuration file, not hack around in the reset script.

I still couldn’t get the mouseout bit to work. I knew this code was being called: if I replaced it with document.write(“rude word”); then rude words were written.

So this evening I revisited leaflet’s example, determined to get it to work. This example has all the functionality built into a script in the html file, not a separate ‘external’ script. Not really the way I want but I’m running out of time…

I realised that the geocoder was being called but just failing somewhere. I’m not sure how I worked it out but the fail point was that geocoder calls a function in my main external script to limit its searches to Scotland – the same bounds as are applied to my map. (Without this search-area limiting, searching for EH10 postcodes shows Walthamstow.) But this script is never invoked, so the function isn’t callable. So instead of calling that function, I’ve copied it into the geocoder. Now that works! And so do all the other bits. I can make the reset script call the configuration file, so long as they are in the right order in the html header (i.e. configuration before the reset function that depends on it – so perhaps the issue was that the geocoder was calling the main script before it was available.

There was another wrinkle adding in the CC marker code. Something doesn’t like a variable called location. Changing that to ccLocation worked.

So here is the whole lot working – but with the javascript embedded in the HTML.

My task for tomorrow is to get the javascript into a separate file, so that this works, cos right now it doesn’t. Then write some documentation, then write a talk for the OKFN meet-up tomorrow.

Advertisements

2014_03_04 progress re LA colours, calculating LA extrema and switching off unwanted polygons for markerClusterGroups

We’re into March! After meeting with the client, a few changes are needed.

Colouration

Working from the chloropleth example, I’ve chosen 5 colours (cyan = #0080ff, red = #ff0000′, yellow = #ffff00, blue = #0000ff’ and green = #00ff00). This choice was inspired by Education Scotland’s map.)

In the geoJSON file, each feature (i.e. each LA) has an extra line in the ‘properties’ piece: “colour_code”:3 //BMR 2014_02_21.

The code to decide colours is
function getLAcolour(d) {
  return d == 1  ? ‘#0080ff’:
            d == 2  ? ‘#ff0000’:
           d == 3  ? ‘#ffff00’:
           d == 4  ? ‘#0000ff’:
           ‘#00ff00’;
} // end getLAcolour()

Then there’s a function to create a style object:
function laStyle(feature) {
    return {
        fillColor: getLAcolour(feature.properties.colour_code),
       weight: 2,
       opacity: 1,
       color: ‘white’,
       dashArray: ‘3’,
       fillOpacity: 0.7,
       fillOpacity: 0.4
   };
} //end laStyle(feature)

Then the geoJSON function does the heavy lifting:
L.geoJson(laBoundaryData, {style: laStyle}).addTo(laLayerGroup);

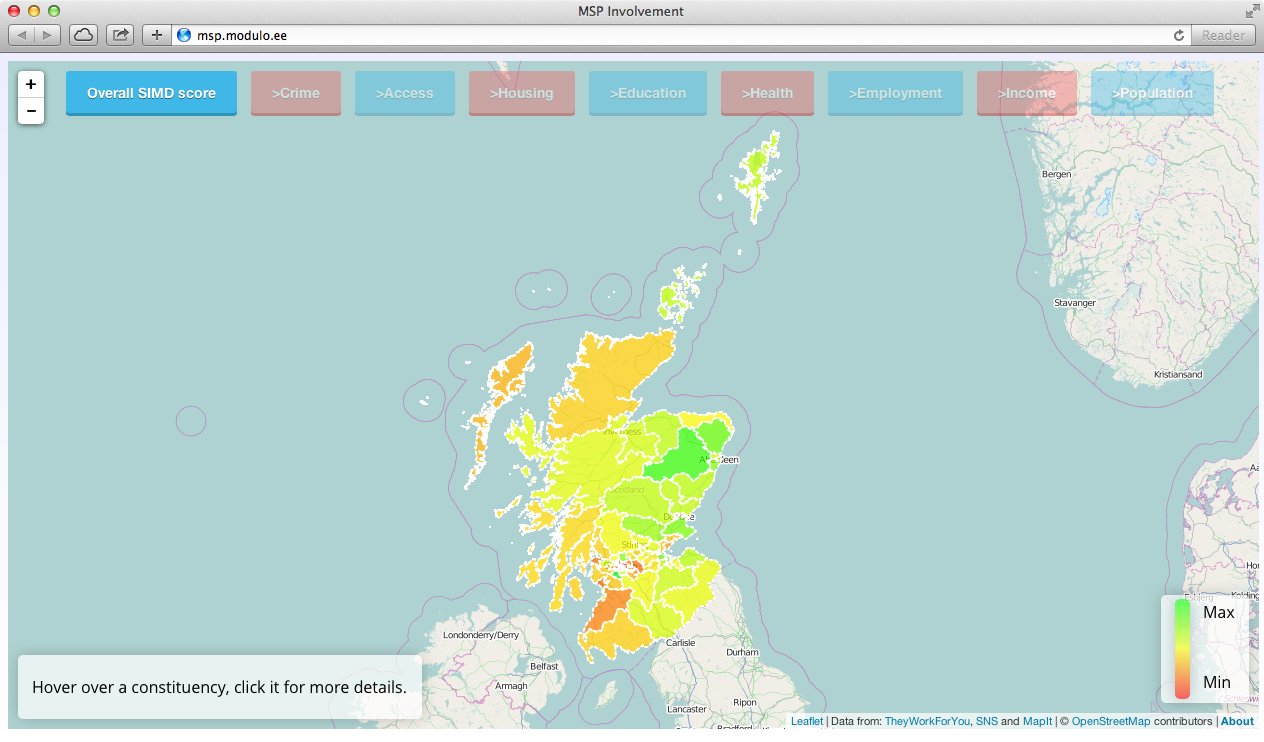

So the whole effect looks like this:Screen Shot 2014-03-04 at 16.28.40It’s deliberately similar in look to this map of constituencies and MSP activities:Screen Shot 2014-03-04 at 16.29.32I’ve also moved the link to © data and acknowledgements to a second line in the acks piece at the bottom of the map, so far less screen area is taken up by non-map things. The instructions will go onto a pop-out pane access from a big ? on an edge of the map. Currently they clutter things:Screen Shot 2014-03-04 at 16.34.14

Calculating LA boundaries and extrema: how I did it

I do not claim this was the most efficient way! The following is an expanded write-up of a previous blog entry.

  1. Obtain up to date shape files from the Ordnance Survey (BoundaryLine is the relevant product.)
  2. Start a new project in QGIS.
  3. Do Layer > Add vector layer and select district_borough_unitary region.
  4. Make the layer editable.
  5. Select and cut out the non-Scottish features.
  6. Save the project as Scotland.
  7. Select each LA in turn, then do Vector > Geometry tools > Simplify geometries. The options I used were:Screen Shot 2014-03-04 at 17.07.58 but with a different file for each LA. For example, Shetland’s 160,883 vertices were reduced to 5416.
  8. Select the newly-created object, then do Layer > Save selection as vector file, with optionsScreen Shot 2014-03-04 at 17.09.30

So now I had 32 separate geoJSON files. To combine them, I used the process described here to make a single laBoundaryData.js file. That’s my geoJSON file on which the above styling magic works.

Finding LA extrema

In future versions of this map, I’ll want to zoom into individual LAs. The easy way to do this will be (I think) to find the furthest north, south, east, west points of each LA. So I adapted my code to find Scotland’s extrema to work on each LA:
function drawMap() {
    //BMR 2014_02_25
    //find extreme points
    var north = 0;
    var south = 90;
    var west = 90;
    var east = -90;

    for (var i = 0; i < coordinates.length; i++) {
        var laDatum = coordinates[i];
        // the other way round from the getScotlandBounds because geoJSON latlongs are in the opposite order to leaflet latlogns
        var longitude = laDatum[0];
        var latitude = laDatum[1];

        if (latitude > north) {
            north = latitude;
        //end if

        if (latitude < south) {
            south = latitude;
        //end if

        if (longitude < west) {
            west = longitude;
        //end if

        if (longitude > east) {
            east = longitude;
        //end if
    //end for

    document.write(“north = ” + north + “, south = ” + south + “, west = ” + west + “, east = ” + east);

}// end drawMap

It’s a complete hack but I copied, pasted and edited the results into my laData.js file to get line such as
    [“Angus”, “http://www.angus.gov.uk/commcouncil&#8221;,
        56.986816427679120, 56.46164866362316, -3.407021822671358, -2.420365421269425],

If I’d been clever, I’d have made the script write the extrema data to the file. But this is a one-off and so it would have taken longer to write code to do it than to do it myself.

Switching off unwanted polygons for markerClusterGroups

Awe and respect to the leaflet programming folk. I feared I might need to dig into their actual code to switch off these unwanted polygons. But it’s as simple as adding an option object to the otherwise unoptioned code. That is, from this

L.markerClusterGroup();

to this

L.markerClusterGroup({showCoverageOnHover: false});

2014_02_21: even more LA boundary progress

So a good conversation with Napier’s visualisation expert and I’m now more aware of some of the ways to make my code more bombproof – too be implemented this weekend, if paper-writing and having a life allow.

Meanwhile I’ve completed colouring the LA boundaries. Here’s some pretty pictures:

Neither LAs nor CCs switched on

Neither LAs nor CCs switched on

CCs switched on

CCs switched on

LAs switched on

LAs switched on

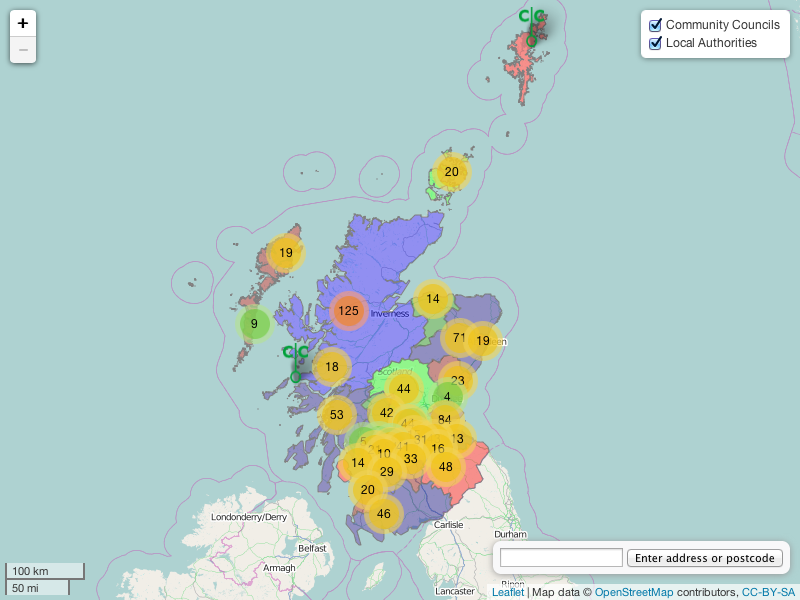

both switched on

both switched on

I’m not too bothered that this uses 6 colours when there should be a four-colour solution. I’d be more picky about the actual colours used. Changing the colours is easy – just changing up to 6 values in a function in my main script. Changing which LAs each colour is applied to involves opening the huge geoJSON file full of LA data, then finding, say, East Ayrshire, then changing the value of colour_code immediately below it.

2014_02_21: more LA boundary progress

Manually copying and pasting 32 sets of bits of file is fraught with difficulty, as any fule kno.  So there had to be an easier way to assemble the individual LA geoJSON files into one javascript file. I did a lot of comparison of the brackets and guts of the working-so-far leaflet example and my geoJSON files. My file began with

{
“type”: “FeatureCollection”,
“crs”: { “type”: “name”, “properties”: { “name”: “urn:ogc:def:crs:OGC:1.3:CRS84” } },


We only want one FeatureCollection, with 32 features for the 32 LA boundaries. So in a new laBoundaryData.js file, containing var laBoundaryData = { }; from the first LA file insert

      “type”: “FeatureCollection”,
      “crs”: {
            “type”: “name”,
            “properties”: {
                  “name”: “urn:ogc:def:crs:OGC:1.3:CRS84” } },

      “features”: [{
            “type”: “Feature”,
            “properties”: {
                  “NAME”: “Aberdeen City”,
                  “AREA_CODE”: “UTA”,
                  “DESCRIPTIO”: “Unitary Authority”,
                  “FILE_NAME”: “ABERDEEN_CITY”,
                  “NUMBER”: 7.0,
                  “NUMBER0”: 34.0,
                  “POLYGON_ID”: 122136.0,
                  “UNIT_ID”: 30421.0,
                  “CODE”: “S12000033”,
                  “HECTARES”: 20561.013,
                  “AREA”: 1990.394,
                  “TYPE_CODE”: “AA”,
                  “DESCRIPT0”: “CIVIL ADMINISTRATION AREA”,
                  “TYPE_COD0”: null,
                  “DESCRIPT1”: null,
                  “colour_code”:2         //BMR 2014_02_21
            },
            “geometry”: {
                  “type”: “MultiPolygon”,
                                    “coordinates”: [ [ [ [ -2.360870189456887, 57.10919031061777  ….]]]] } },

Note the comma. After it, paste { “type”: “Feature”, “properties”: ….]]]] } } from the next LA file, then add a comma. Then rinse and repeat.

Far from elegant but much easier than isolating wee bits from each file.

2014_02_20 more LA boundary progress

I spent a while today trying to drop a marker at the user’s entered location. It’s easy to do on(zoomed) add marker but removing it at the next zoom is so far beyond me. Back to fighting with LA borders – the theatre of battle being styling them

I knew from leaflet’s example that leaflet does style geoJSON – so the issue must have been with my geoJSON files. When in doubt, copy: I copied leaflets’ code for colouring US state geoJSON data, substituted in the Scottish LA names and a piece to colour them by code rather than population density, and lo and behold it works.

Truth – it took a while to isolate the co-ordinate lines, so I’m only a wee way into substituting in the LA co-ordinates. But here’s the proof:

Screen Shot 2014-02-20 at 22.51.16

2014_02_19: LA boundary progress

With thanks to Leaflet.js forum members Matt and Simon.

I was encouraged to try again to obtain up-to-date LA boundary data from the OS. This time I obtained a set of shape files. The relevant shape file was district_borough_unitary_region.shx. I opened that in QGIS, removed the non-Scottish areas and saved the result as Scotland.qgs. I then selected and saved each LA in turn as a geoJSON vector file (with CRS = WGS84/EPSG4326 as before). So this got me up-to-date accurate LA boundaries. But these are quite large files: averaging 2MB each. (Of course Highland was much bigger than Clackmannashire, for example.)

To obtain simplified files, I selected each LA in turn, then did Vector > Geoprocessing tools > Simplify (options: ‘use only selected features’, tolerance = 50, ‘save to new file’, ‘add to canvas’) so that I had a patchwork of separate LAs:

simplified LAsI then selected each simplified LA in turn and saved them as geoJSON files. The resulting files are about a twentieth of the size of the unsimplified files. Yet zooming right in shows an acceptable (to me) fit to the unsimplified boundaries and coastlines. Yeehah.

We have layers

Screen Shot 2014-02-19 at 14.53.03And now the LA group is off by default, while the locater and layer controls are expanded by default:

Screen Shot 2014-02-19 at 15.32.29



2014_02_16: progress

So after ac couple of days of literature reviewing, and spending Saturday being social, I was back at the code-face today.

Task 1: understand – and maybe cure – the failing geocoder

Entering single-initial letter postcodes such as EH3 7PX works – the map zooms to the right place. Entering textual places such as Merchiston, Leith Links, Macmerry and Dalry also works. But EH10 5DT still appears to be in Walthamstow, instead of Merchiston. EH12 6AP appears to be slightly east of Walthamstow, instead of near Murrayfield.

I noticed that EH10 5DT and E10 5DT both give the same place (in east London), as do EH12 6AP and E12 6AP. So Nominatim is omitting the H in some cases. Interestingly, the geocoder works with Macmerry’s postcode (EH33 1PL).

To see whether it was my fault, I created a stripped-down version from scratch: the javascript contains just the map declaration, the code to fill it with tiles and the geocoder. Same result – so it’s the geocoder, not my code. I feel far less guilty but I’ll need to fix this.

Task 2: understand how leaflet.js handles geoJSON files

I worked my way through http://leafletjs.com/examples/geojson.html. I got most of it to work, except for styling the output. I then got a trial LA boundary to work – this trial had 4 co-ordinates. If it will work for four, it will work for many, many more – but will take longer.

Task 3: make geoJSON files of LA boundaries

With thanks to a Leaflet mailing list member for some sage advice, I’ve installed QGIS. This could open the 18-month old UK local authorities file I obtained from https://www.sharegeo.ac.uk/handle/10672/305. (It couldn’t handle the .sld files I obtained from the Ordnance Survey.) The way I worked – there may well be better ways – was to select an LA, then do Layer > Save selection as a vector file with options

  • format = geoJSON
  • CRS =  WGS84/EPSG4326

It took a while to work out the correct CRS option. I was surprised it wasn’t WGS84/PseudoMercator/EPSG3857 because that appears to be Leaflet’s default CRD. Then again, what do I know about converting points on am irregular 3D surface to points on a flat plane?

Anyway, that gave me 32 nice geoJSON files in a little less than 2 hours.

Task 4: display LA boundaries

Using my stripped-down version of the code, I added in 32 routines to display the LA boundaries. They were still in the default blue – remember I’d not cracked styling them. There may be an advantage to separate routines and data files. If an LA ever changes, I’d just need to make new geoJSON files for that LA and its neighbours, and each can be coloured (if this ever works!) separately. Anyway, by adding var = <LA_name> [ to the beginning of each file and ]; to the end of each, then appropriately commenting off all routines except for the LA I was testing, I made sure each displayed OK.

I then tried a few methods to programatically assemble the files into one huge array of the form var laBoundaryData = [ [content of first geojson file], [content of second geojson file], ….[content of last geojson file] ];  Another hour down the pan and no joy, so I did it the hard way, copying and pasting the contents of the geoJSON files into
var laBoundaryData = [
],
[
],
[
]
];

It almost worked straight off – all the LAs apart from Shetland and Scottish Borders displayed as they should. Shetland and Scottish Borders had some weird horizontal lines, but removing them from the huge file, then replacing their code from their individual geoJSON files got rid of these nasty artefacts. I guess I had pasted the code in slightly the wrong place first time round.

Then the code for displaying the LAs is just a simple traversal of the array of LA boundary data. And all this without going anywhere near the command line.

So with my map displaying all LA boundaries, it was time for…

Task 5: putting it all back together

I’d thought this would be easy – just replace the code lumps for calculating the map centre, its bounds and displaying the CCs. Not a bit of it! Failure points included not calling the data, scripts and even the css in the right order, the functions for calculating centres and bounds not being called properly – aarrgh. Anyway after a couple of hours, it’s all there. It’s slow (I guess need to simplify the LA shapes before writing them to geoJSON format), the geocoder is still a mystery but it works. Yeehah!

The initial result

The initial result

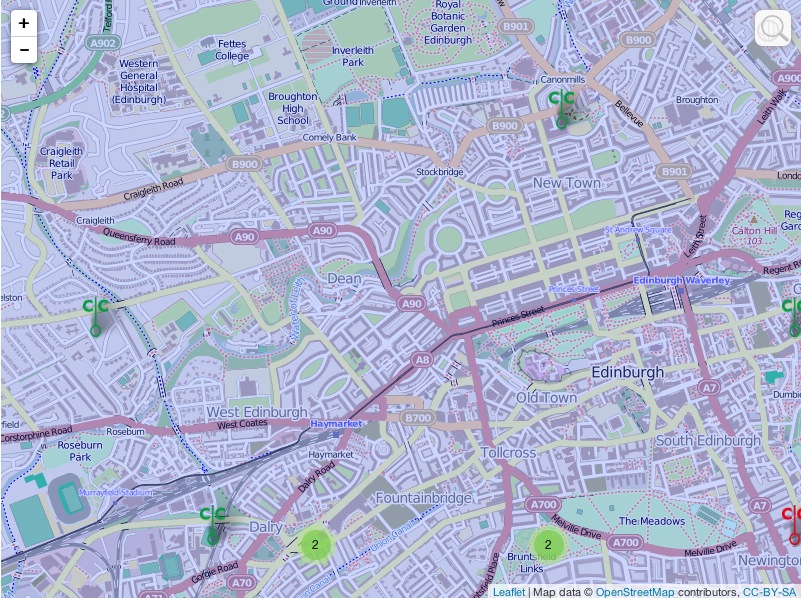

zoomed into the West End of Edinburgh - see the markers for individual CCs

zoomed into the West End of Edinburgh – see the markers for individual CCs



My reward for all that – 2 more hours doing stuff to a real CC’s website!



2014_02_08

Just started processing Shetland shape file. There are 549 polygons. There are 201,158 co-ordinates. Updated process:

  1. Prepare a Word text file called Shetland.js which contains only var shetland = [ ];
  2. In a copy of the file containing the data for Shetland, replace all ] ], [ [ with two <new line> in Word. Save.
  3. In the same file, replace all ], [ with <new line> in Word. Save.
  4. Get rid of dross at beginning and end of file. Save. You now have just co-ordinates, with a double <new line> between the set for each island.
  5. Find first double <new line>.
  6. Cut all co-ordinates preceding this. Save – you don’t want to risk doing this set twice.
  7. Paste the clipboard into the online batch converter, then convert.
  8. Copy the converted data into TextMate. Save.
  9. Do the first RegEx to get rid of the dross from the conversion step. Save.
  10. Do the second RegEx to replace all <new line>s with ], [, then save.
  11. Add , [ [ to the beginning of the Textmate file, and ] ] at the end. Save.
  12. Copy the whole of the TextMate file and paste it into shetland.js just before ]; (For the first set, you don’t need the initial comma.) Save.
  13. Refresh the map webpage – another island will have been highlighted.

2014_02_06 encore

I couldn’t leave it alone this evening – 5 hours after I got home and I’ve done the 6 LAs on Scotland’s mid-east coast. The wee bit that was missing from Aberdeen has been restored. (I processed that dataset again and the missing points magically reappeared. So here it is in glorious technicolour:

Screen Shot 2014-02-07 at 04.46.30

The points are very close to the LA boundaries on OpenStreetMap tiles, which is quite encouraging. The dashed line is OpenStreetMap and the solid line is Leaflet’s rendering of the converted data.

Screen Shot 2014-02-07 at 04.46.12

Fife is a 4-part multipolygon, that is there are four polygons in the bits that represent Fife. I guess these are the Isle of May, Inchkeith and Inchcolm. Each part of a multi polygon requires separate processing via the hero of the hour(s), http://gridreferencefinder.com/batchConvert/batchConvert.php.

So I’m dreading doing Shetland, Orkney and the Western Isles. But perhaps they don’t need to be marked or coloured because they are clearly separate from the mainland.

Less heroic have been Mac TextEdit (no RegEx), TextMate (one successful RegEx, then fell over and won’t stop trying to process a long finished-with Angus file) and Word (it has done most of the heavy kiting but has fallen over at least 10 times). I’ll forgive Eclipse for chugging away with RegExes very slowly but I won’t forgive it for completing the RegEx then hanging so I can’t save the result.

The optimal process seems to be

  1. Open the original data file in Word.
  2. Find any sub-polygons, by replacing  ] ], [ [ with multiple <new line>s.
  3. Save.
  4. Grep ], [ with ,<new line>
  5. Save.
  6. Get rid of the dross at the start and end of the of the file, so that I’m left with just sets of [number,number],<new line>[number,number], …[number,number],<new line>[number,number].
  7. Save.
  8. Manually copy and paste the first set into the heroic web page, and tell it to convert. If it moans, there is more than one set in what I’ve copied, so go back and sort it out. At this point, Word will fall over – hence the multiple saves,
  9. When a clean data set is in the hero, it will convert the data to lines containing some unwanted blurb and the data in LatLong format.
  10. Copy that bit to a new TextEdit file called <LA-name>.js, then leave some spaces.
  11. Convert the next data set, i.e the next polygon in the multipolygon.
  12. Copy and paste that data into the TextEdit file.
  13. Repeat steps 8-12 until all polygons are in the TextEdit file. Save and close it.
  14. Open it in Eclipse. Do the RegEx to remove the unwanted blurb. (To play it safe, do a few hundred lines at a time, saving each time.
  15. Save and close the file – Eclipse is about to fall over.
  16. Open the file in Word again, then replace all multiple new lines with a suitable swearword.
  17. Replace all new lines with ], [
  18. Replace the swearwords with ], [
  19. Top and tail the file so that it has the format var <LAname>  = [ [ [number, number], … [number, number] ],  [ [number, number], … [number, number] ], …  [ [number, number], … [number, number] ] ];
  20. Save it in the right place in the website data structure, add the necessary call to index.html’s head and the necessary Leaflet call to drawMap.js.
  21. Open the web page and draw the map.
  22. Fix the colours in drawMap.js
  23. Move on to the next LA!

2014_02_06

  1. got UK local authority data from https://www.sharegeo.ac.uk/handle/10672/305
  2. converted .shx file to .js using ogr2ogr -f “GEOJSON” newfilename.js sourcefilename.shx
  3. open resulting 88MB file in Word – around 10,000 pages.
  4. Find first mention of Scotland – it’s about 7000 pages in. It’s to do with Angus.
  5. Find second mention of Scotland. This is in the code marking the start of the data for Clackmannanshire.
  6. Select all the data for Angus, then cut it out and paste it to a new document. Save that as Angus.txt.
  7. Repeat steps 4 to 6 to get data files for all 32 Scottish LAs.
  8. Such a shame they are in National Grid format, not lat/long.
  9. proj4leaflet claims to handle other projections. Trying it but the huge size of the clackmannashire data file seems to be killing Eclipse. So have abandoned that, going back to what we have so far and trying to convert NG co-ords to latlong.
  10. http://gridreferencefinder.com/batchConvert/batchConvert.php batch converts but there’s a lot of Word/RegEx jiggery pokery to prepare the stuff for batch-conversion, then convert the results to array format.
  11. It almost works for Aberdeen, but a few data-points seem to be missing.Screen Shot 2014-02-06 at 19.00.04Screen Shot 2014-02-06 at 18.57.41

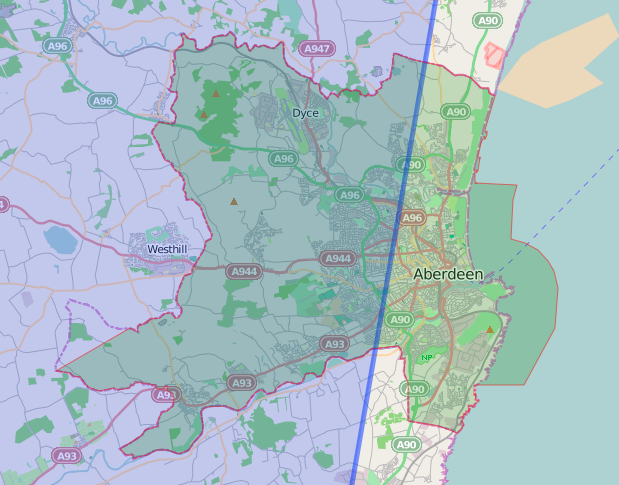

  12.  (Ignore the blue line and shading in the first screenshot – it’s part of a very rough outline of the UK, from when I was trying to get to grips with geoJSON use in Leaflet.Screen Shot 2014-02-06 at 19.01.54
  13. The conversion step is choking my mac, so time to ask the internet if anyone has LatLong shapefiles for the Scottish LAs.
  14. Here endeth today’s lesson.
